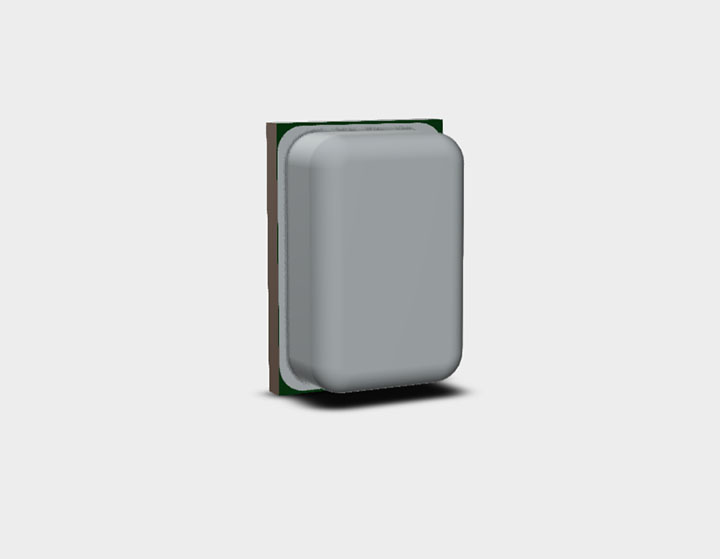

MA-ERA381-H43-1A
优势与特点
-

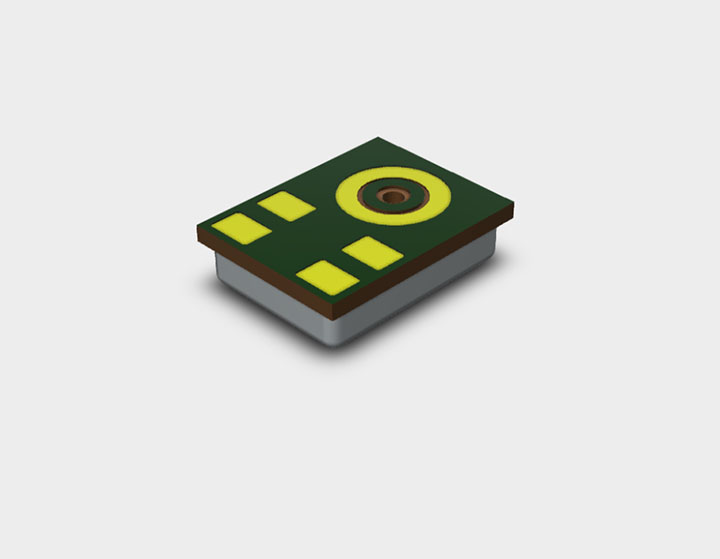

3.35×2.5×0.98 毫米底部端口
-
差分输出
-
窄灵敏度范围 ±1 分贝
-
高信噪比，达 66 分贝 A 计权（dBA）
-
高声学过载点（AOP），达 137 分贝声压级（dBSPL）
-
射频屏蔽
-
兼容标准表面贴装回流焊技术（SMD）
-
符合 RoHS 标准且无卤素
性能参数
| Parameter | Symbol | Condition | Min | Nom. | Max | Unit |
| Sensitivity | S | f=1kHz, Pin=1Pa, 0dB=1V/Pa | -39 | -38 | -37 | dB |
| Operating Voltage | VDD | 2.3 | 2.75 | 3 | V | |
| Directivity | Omni-directional | |||||
| Polarity | Sound pressure increase | Output voltage increase | ||||
| Sensitivity vs. Voltage | ΔS | Vs= 3V to 2.3V | 0.5 | dB | ||
| Output Impedance | ZOUT | f=1kHz | 400 | Ω | ||
| Current Consumption1 | I | 2.3 V to 3V | 160 | 250 | µA | |
| S/N Ratio | S/N | 20-20KHz Bandwidth, A-Weighted | 64 | 66 | dBA | |
| Total Harmonic Distortion | THD | 94dB SPL @1KHz | 0.1 | 0.5 | % | |
| Total Harmonic Distortion | THD | 131dBSPL @1KHz | 1 | % | ||
| Acoustic Overload Poin | AOP | THD 10%@1KHz | 137 | dBSPL | ||
| Power Supply Rejection | PSR | 100mVpp Squarewave @217Hz, A-weighted | -110 | -90 | dB | |
| Power Supply Rejection Ratio | PSRR | 200mVpp Sinewave @1KHz | 70 | 87 | dB | |
| DC output | VDC | 1.30 | V | |||
| Output load | Cload | 150 | pF | |||
| Output load | Rload | 25 | MΩ | |||
| Note：Frequency response, sensitivity and current consumption are tested by 100% on product line. | ||||||
